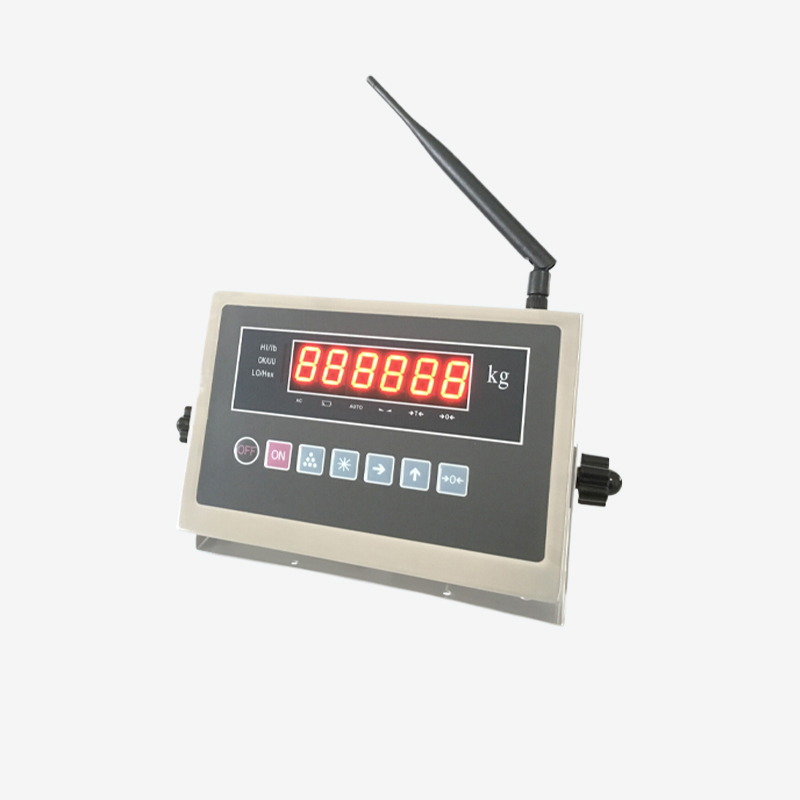

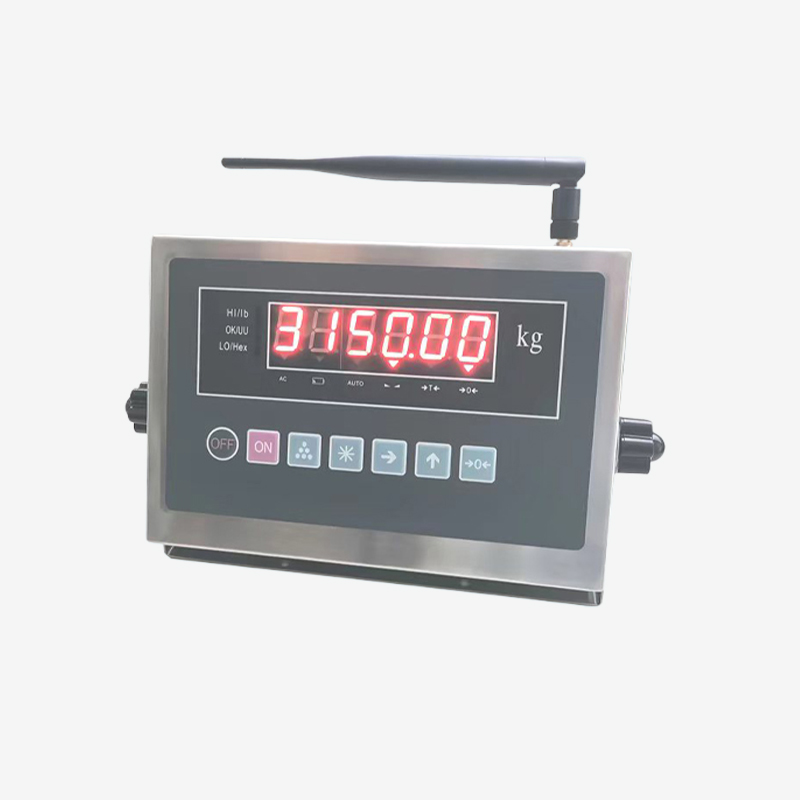

TCPIP-35A4
Stainless steel housing;
6-digit 20.2mm red LED;
Dimensions: 265×162×58mm;
Applications: Electronic platform scale, weighing scale, etc;
TCP/IP weighing indicator, with WiFi - WAN/LAN;
Modbus ASCII communication protocol.

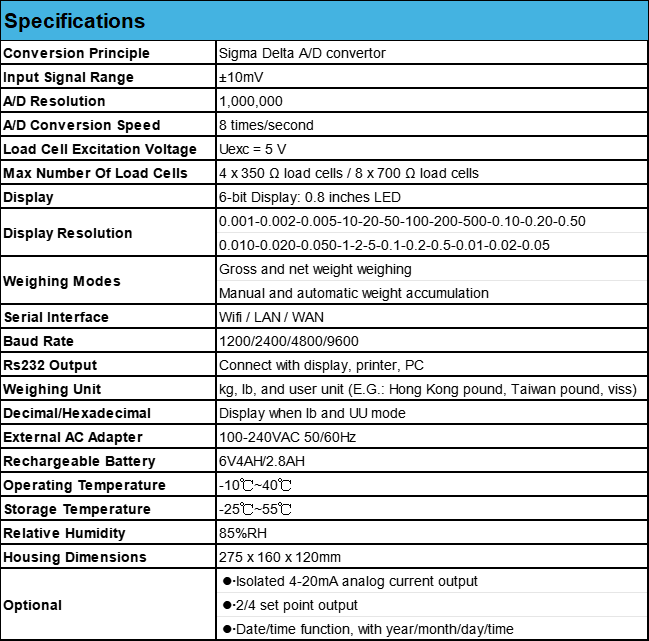

Technical Parameters
Model: TCPIP-35A4
Instrument Parameters
Power Supply: AC220V/50Hz
Operating Temperature: -10℃ - 40℃
Maximum Humidity: ≤85%RH
Power Consumption: 20W
Protection Class: IP23; Optional IP66
A/D Conversion Speed: 8 times/second
Measurement Parameters
Highest Display Precision: 1/1,000,000
Built - in Rechargeable Battery: 6V/4AH or 6V/2.8AH
Sensor Power Supply: DC5V, can drive up 4X350Ω or 8X700Ω load cells
Communication
Communication Method: Network port: TCP/IP; WiFi wireless communication
I/O Interface
Software Version: VER20.1---4 set points, 2 relay outputs; D - type 9 - pin, optional isolated type 4 - 20mA analog current output.
