Profinet-35A7-CE
Stainless steel housing
6-digit 20.2mm red LED

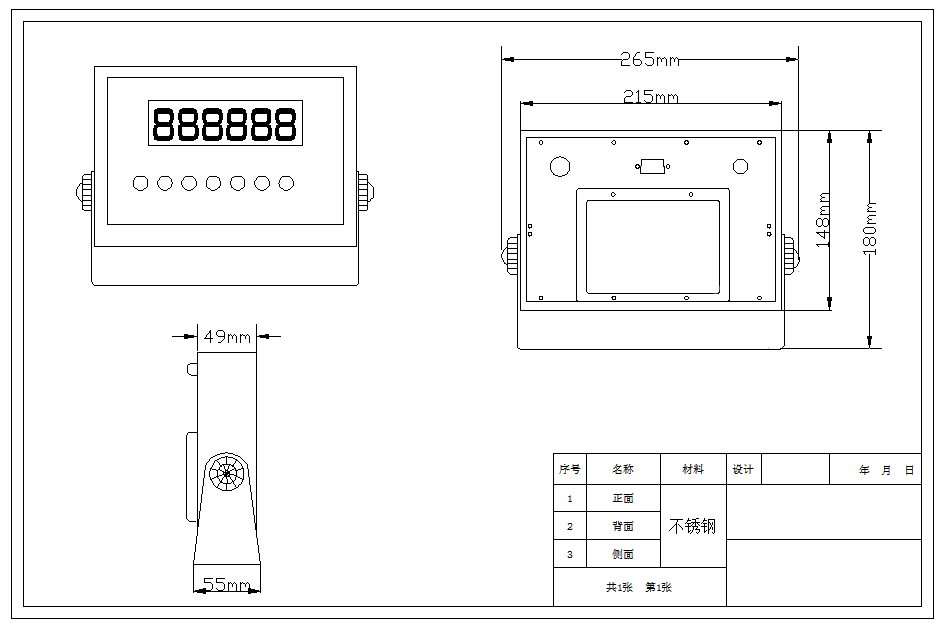

Dimensions:265×162×58mm
Applications:electronic platform scale and weighing scale,etc.

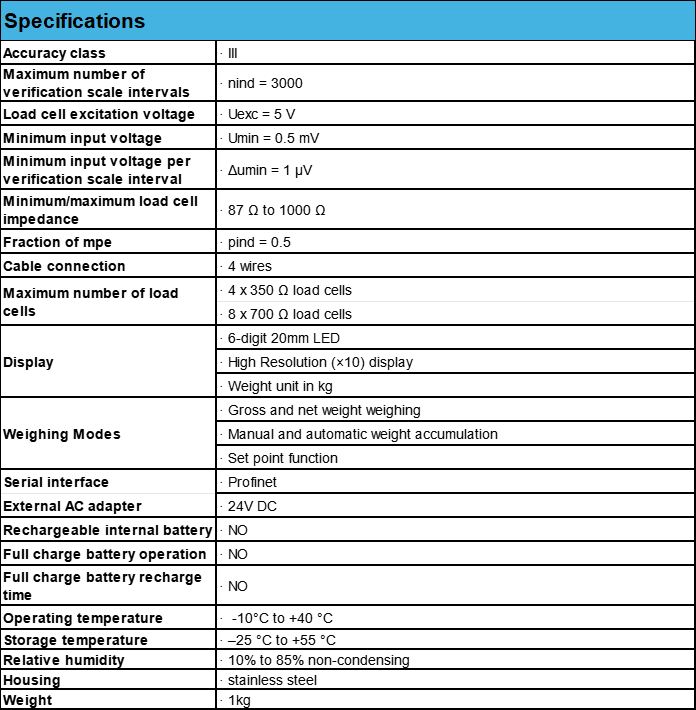

Technical Parameters
Model: Profinet-35A7-CE
Instrument Parameters
Power Supply: DC24V 50Hz
Operating Temperature: -10℃ - 40℃
Maximum Humidity: ≤85%RH
Power Consumption: 60W
Protection Class: Ip23
A/D Conversion Speed: Optional among 10 times/second, 20 times/second, 80 times/second
Highest Display Precision: 1/5,000,000
Measurement Parameters
Sensor Power Supply: DC5V, can connect 4 sensors of 350 ohms or 8 sensors of 700 ohms
Communication
Communication Method: Profinet communication via network port; Optional ethernetIP communication
I/O Interface
Software Version: VER20.1---4 set points, 2 relay outputs; D - type 9 - pin, optional high - type 4 - 20mA analog current output.
