LynhH-6PL-Z4
Capacity: 75kg to 600kg
Product Description

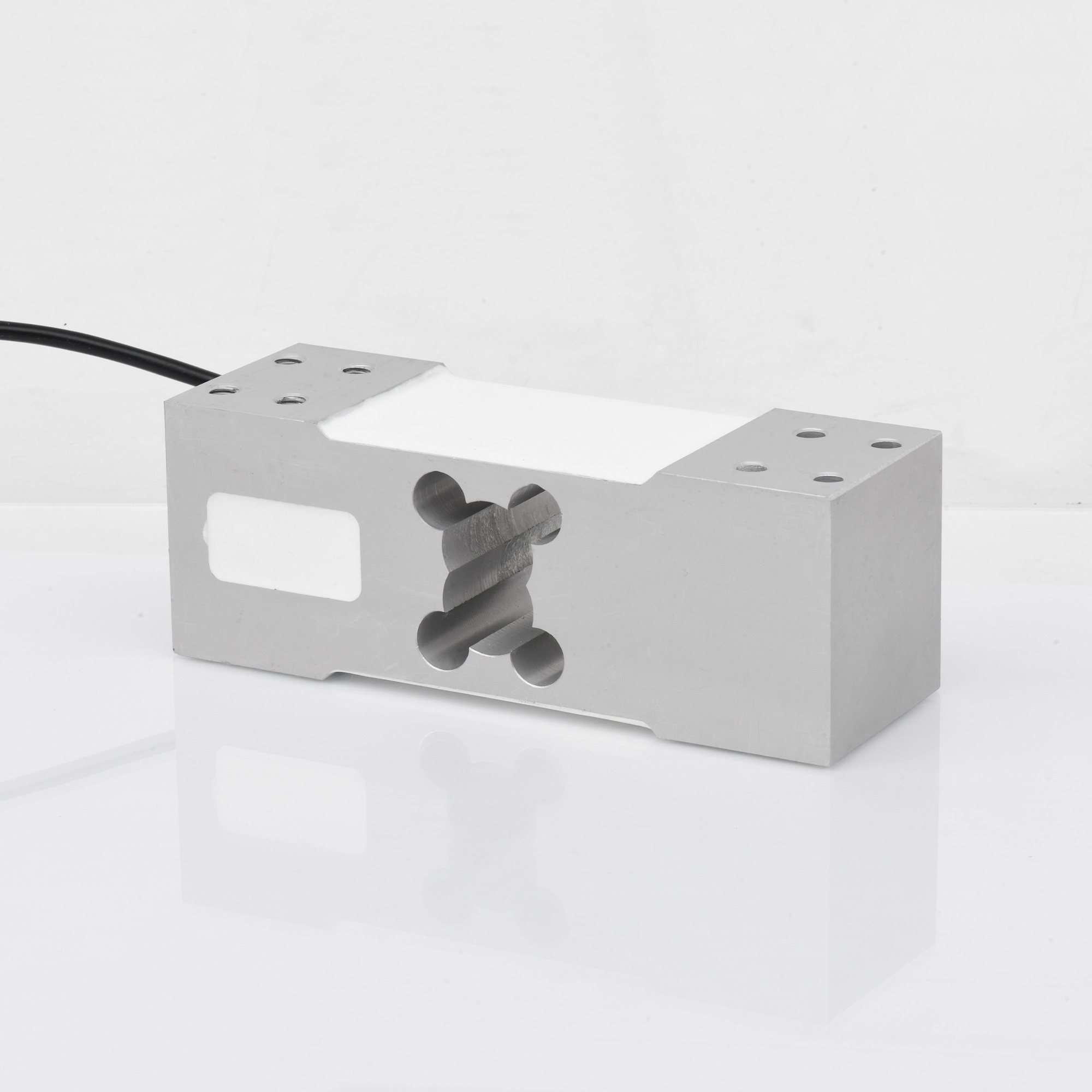

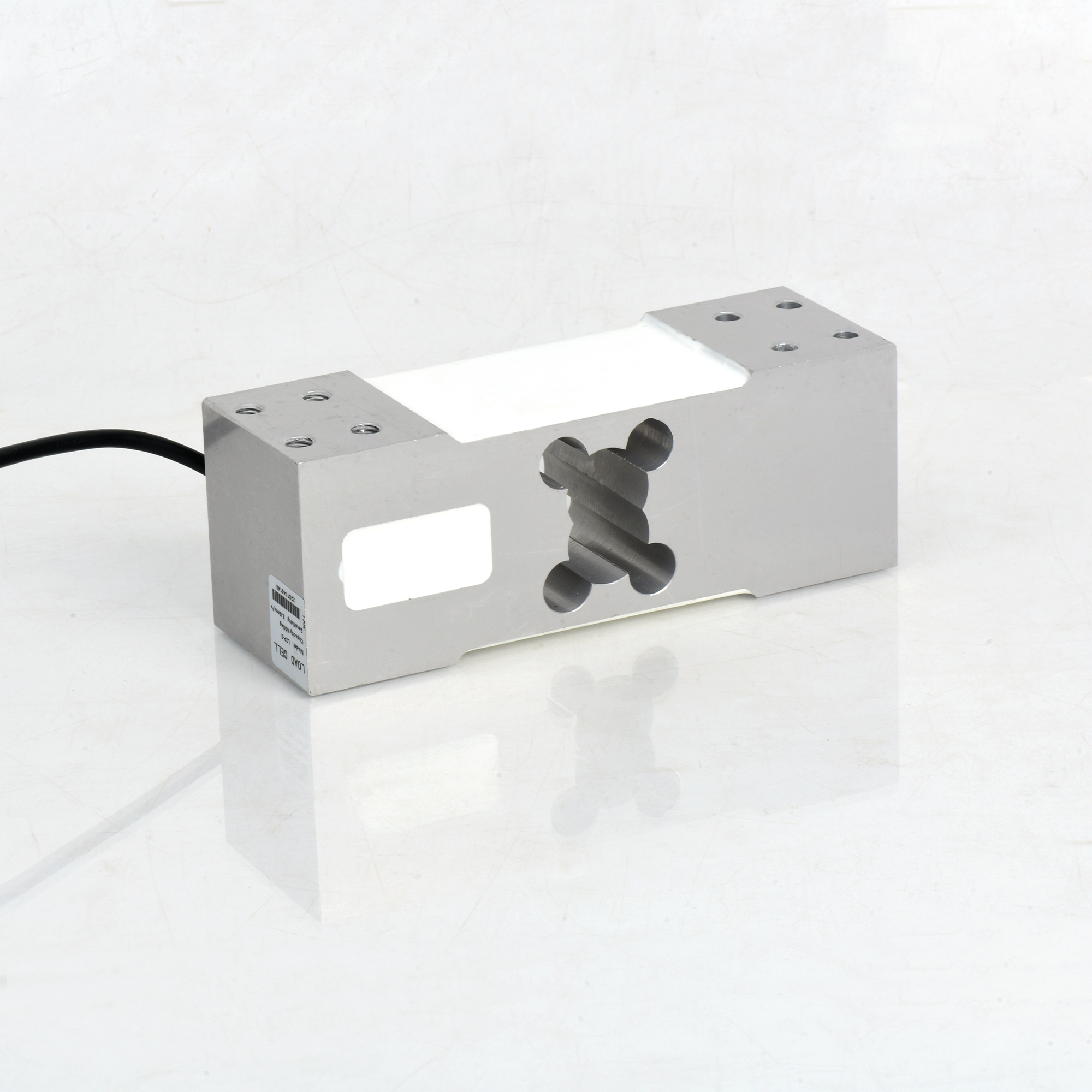

LynhH-6PL-Z4 aluminum box load cell excels in precision weighing, tailored for diverse industrial needs.
LynhH-6PL-Z4 aluminum box load cell excels in precision weighing, tailored for diverse industrial needs.
Advanced Design
Single-point load-bearing structure made of LY12(2A12,AA2024) aluminum alloy, rated at 300KG, optimized via FEA for even load distribution and minimal measurement errors.
Precision Calibration
Factory-trimmed with proprietary algorithms:
Non-linearity ≤ ±0.03% FS, hysteresis ≤ ±0.03% FS, repeatability ≤ ±0.02% FS
Temperature-compensated for -10℃ to +50℃ (TCS ≤ ±0.05% FS/10℃)
Versatile Applications
Industrial platforms in manufacturing and logistics;
Railway weighbridges and freight systems;
Automated batching in chemical, food industries;
Custom OEM solutions like medical and agricultural scales;
User-Centric Features
IP65-rated aluminum housing for dust/water resistance;
Compact, lightweight build with standardized interface for quick installation and maintenance.
Summary: LynhH-6PL-Z4 offers high accuracy, durability, and flexibility, making it a reliable choice for precise weighing across multiple industries.
