LynhH-6PL-S1
Capacity: 3kg to 50kg
Product Description

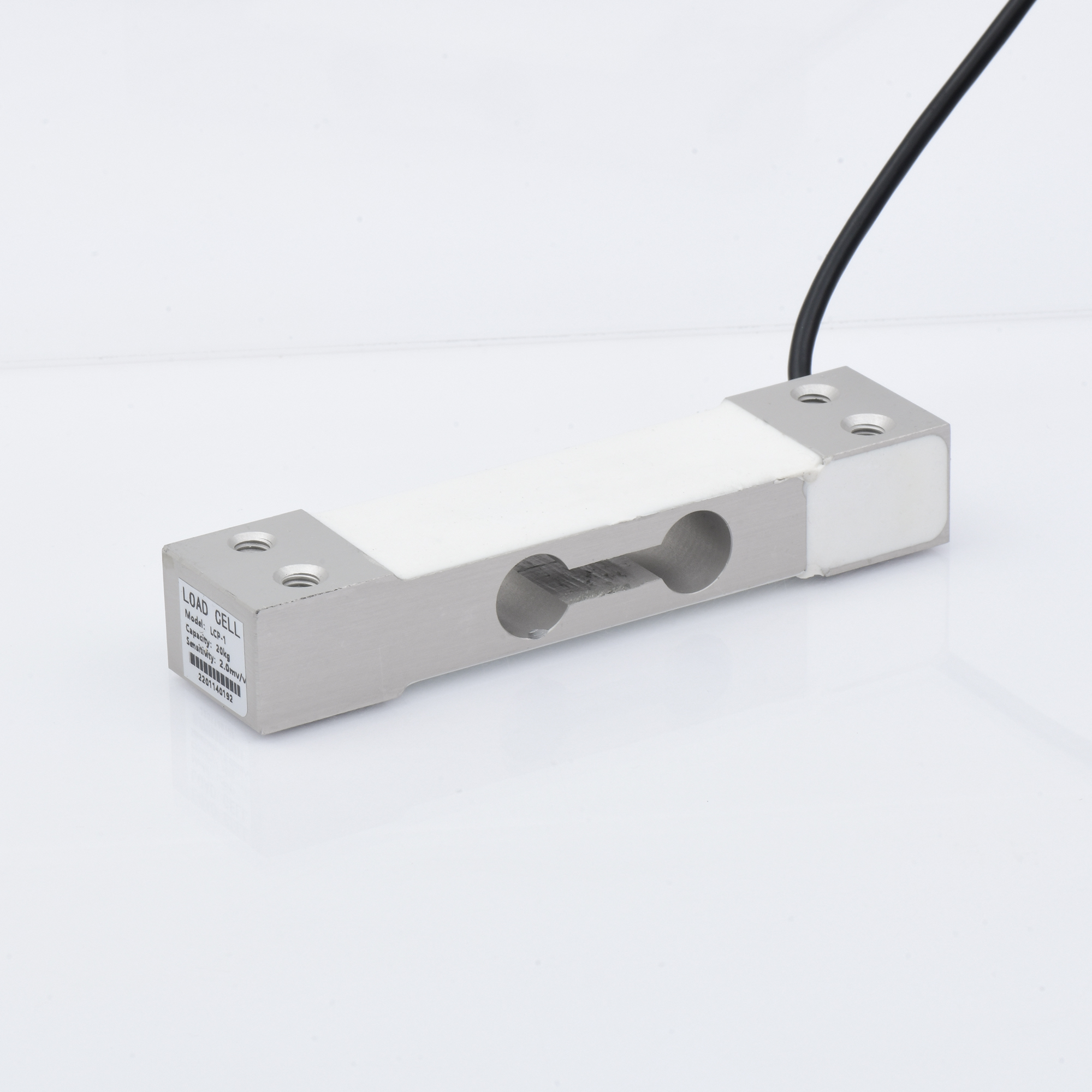

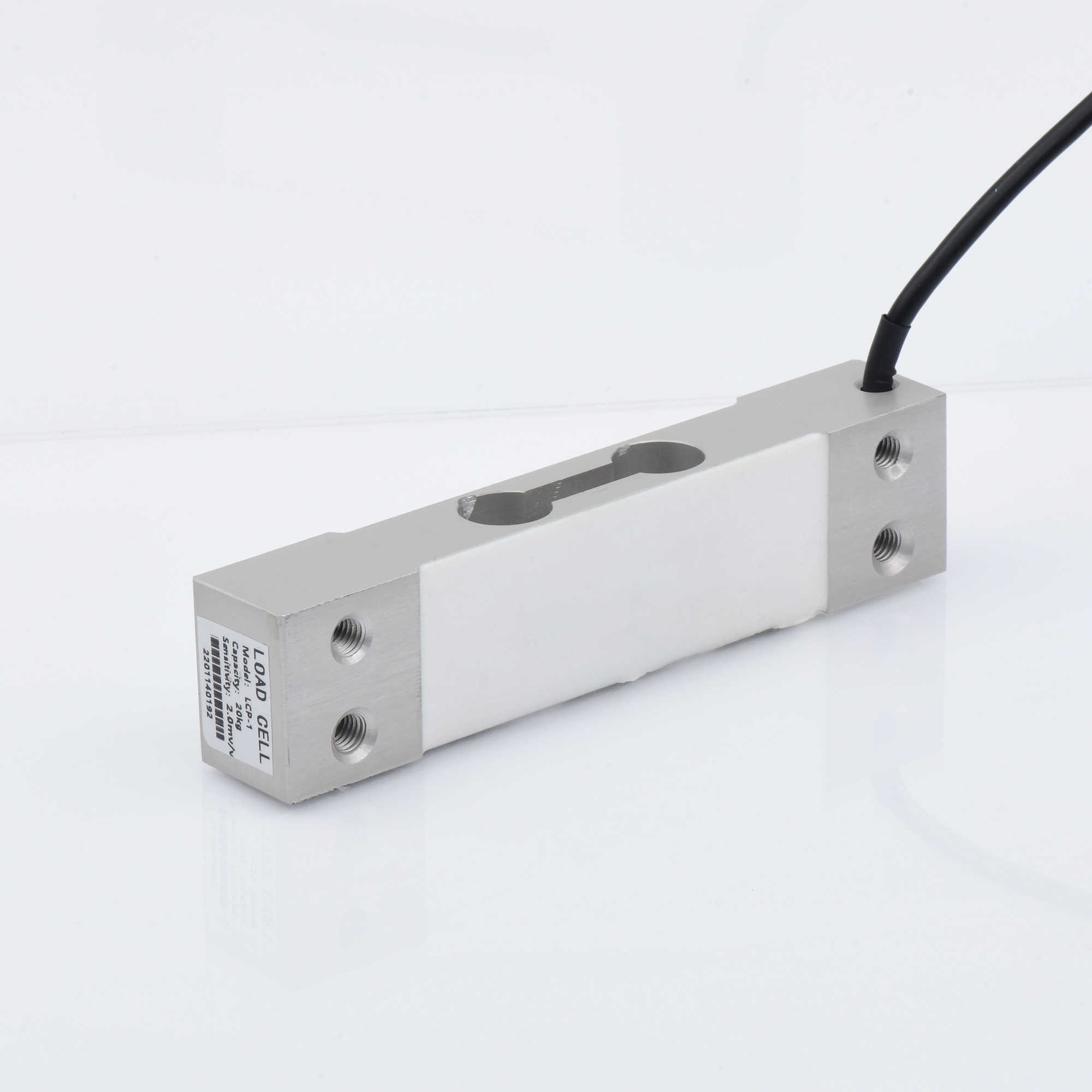

LynhH-6PL-S1 aluminum sensor is a high-performance weighing solution, characterized by its innovative design and advanced features
Product Description
LynhH-6PL-S1 aluminum sensor is a high-performance weighing solution, characterized by its innovative design and advanced features:
Unique Structural Design

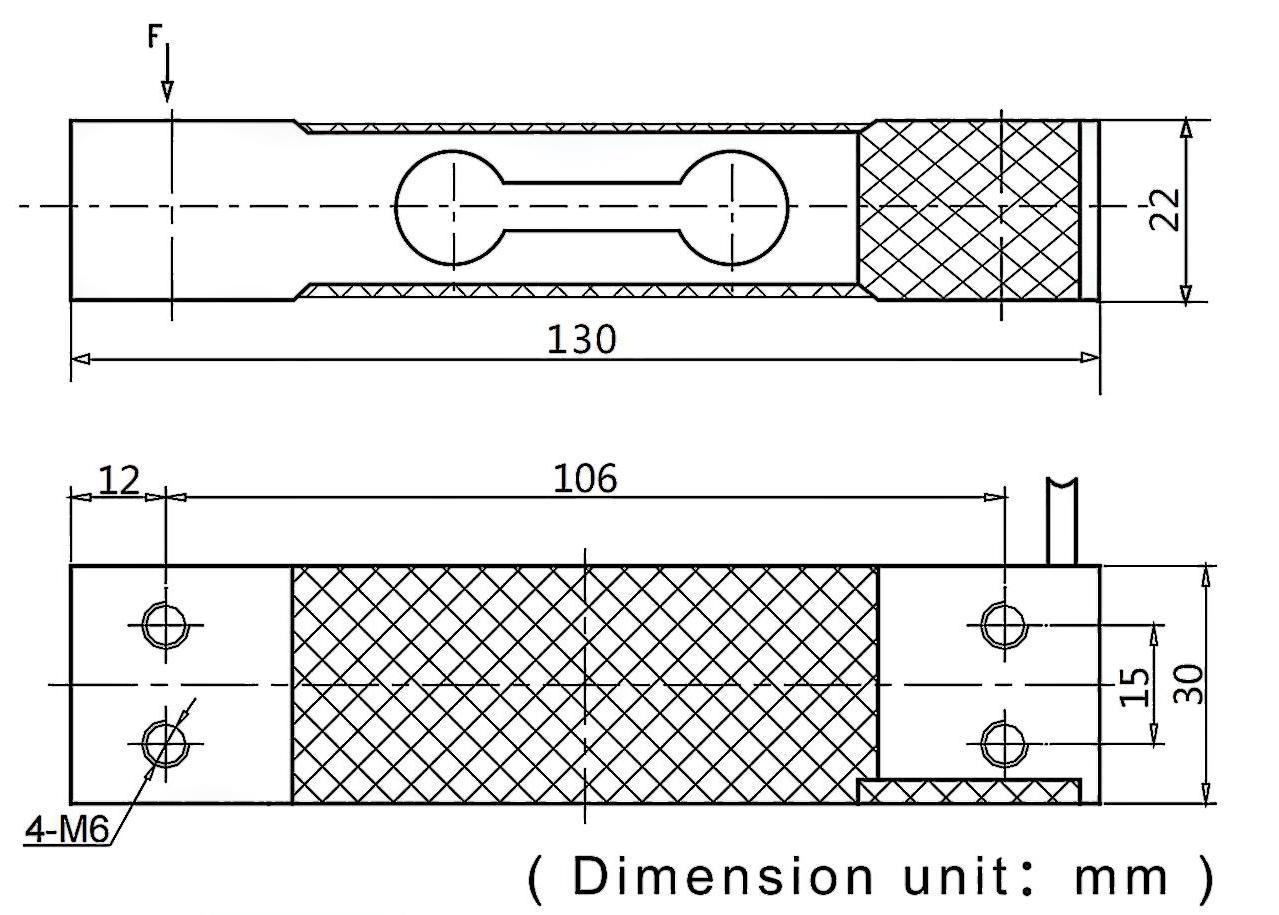

Features a two-hole cantilever beam structure crafted from high-strength aluminum alloy, ensuring excellent mechanical resilience and a rated load capacity from 3~50KGs.
Advanced Manufacturing Processes
Temperature Compensation: Utilizes advanced digital compensation algorithms and high-stability strain gauges. Operates stably within a wide temperature range of -10℃ to +50℃, with a temperature coefficient of sensitivity (TCS) ≤ ±0.05 %FS/10℃, minimizing the impact of temperature fluctuations on measurement accuracy.
Four - Corner Adjustment: Conducted by experienced technicians with precision calibration equipment. Achieves a non-linearity error of ≤ ±0.02 %FS and hysteresis error of ≤ ±0.02 %FS, eliminating errors caused by uneven stress distribution and ensuring consistent readings from all directions.

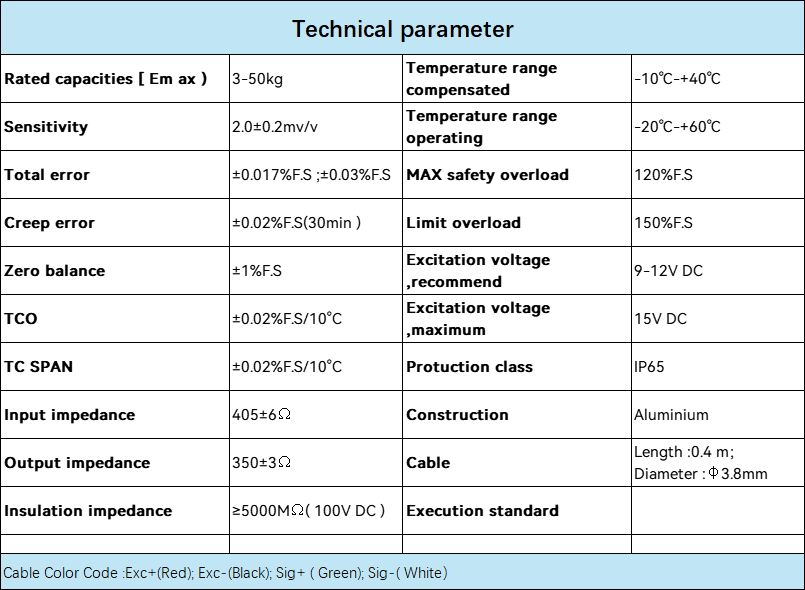

Superior Technical Specifications
Protection Class: IP65 - rated, providing reliable protection against dust ingress and water splashes, suitable for various industrial and commercial environments.
Material Specification: Constructed with aerospace-grade LY12(2A12, AA2024) aluminum alloy, offering high corrosion resistance and durability.
Diverse Application Scenarios
Consumer Electronics: Ideal for small-scale electronic scales, such as kitchen scales, jewelry scales, and pocket scales, due to its low profile and compact size.
Industrial Applications: Suitable for small industrial weighing equipment in manufacturing plants, providing accurate weight measurement for parts and components.
Medical Field: Used in medical weighing scales for precise patient and medical supplies weighing, meeting strict hygiene and accuracy requirements.
Railway and Transportation: Can be applied in railway scale systems for cargo weighing, ensuring accurate freight measurement.
Process Control: Integrated into process control systems in chemical plants, food processing facilities, etc., for real-time weight monitoring and control during production processes.
With its combination of innovative design, advanced technology, and modular features, the aluminum sensor series offer a reliable and versatile solution for a wide range of weighing tasks, from consumer to professional industrial applications.
