LynhH-6PL-Z6
Capacity: 50kg to 500kg
Product Description:

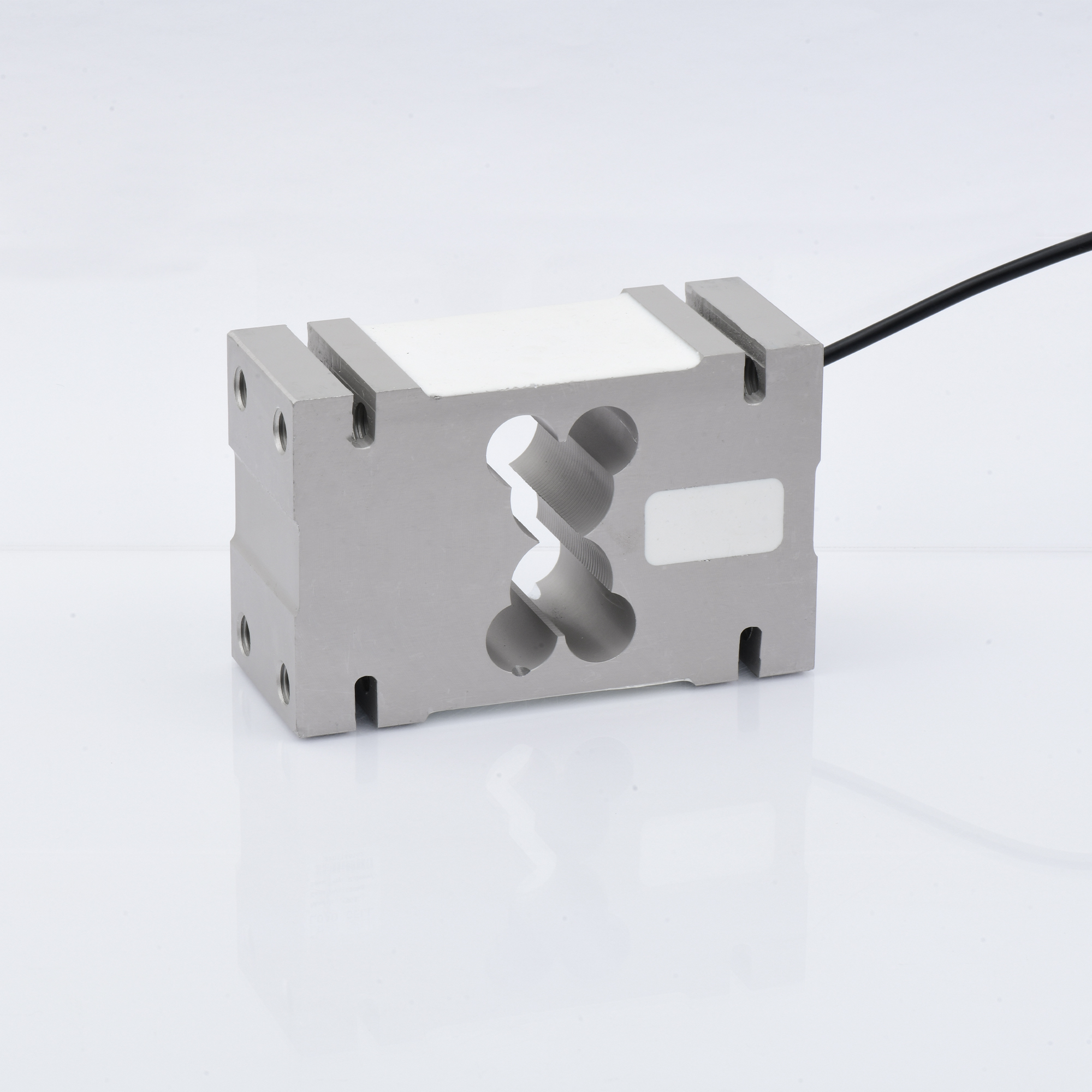

LynhH-6PL-Z6 aluminum box load cell is a high-capacity weighing solution, combining advanced tech with user-friendly design.
LynhH-6PL-Z6 aluminum box load cell is a high-capacity weighing solution, combining advanced tech with user-friendly design.
Advanced Structure
Single-point load-bearing, made of LY12(2A12,AA2024) aluminum alloy. Optimizes force distribution for stable, accurate measurements under heavy, off-center loads.
FEA-validated for enhanced mechanical stability.
Precision Calibration
Factory-calibrated with advanced tools and algorithms.
Non-linearity ≤ ±0.03% FS, hysteresis ≤ ±0.03% FS, repeatability ≤ ±0.02% FS.
Stable operation from -10℃ to +50℃ (TCS ≤ ±0.05% FS/10℃).
Wide Applications
Industrial: Weigh trucks, machinery in manufacturing and logistics;
Railway: For weighbridges to ensure compliant freight measurement;
Custom: Suited for construction, agriculture, and small enterprises.
User Features
IP65-rated housing resists dust, water, and impacts;
2/4-channel options for easy system integration;
Compact design with standardized interface for simple installation and maintenance.
LynhH-6PL-Z6 provides accurate, reliable high-capacity weighing, ideal for various industrial needs.
