LynhH-6PL-Z3
Capacity: 60kg to 500kg
Product Description

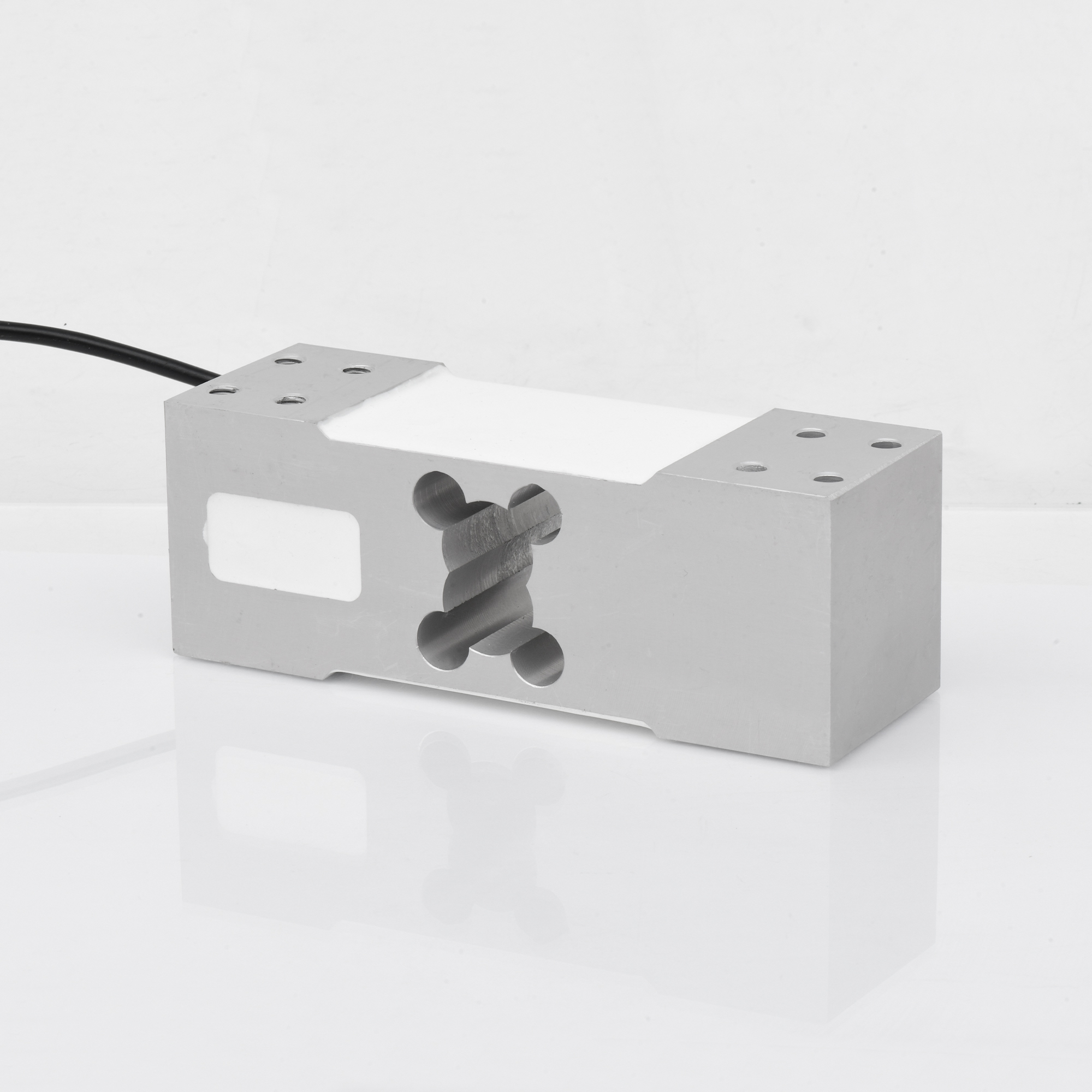

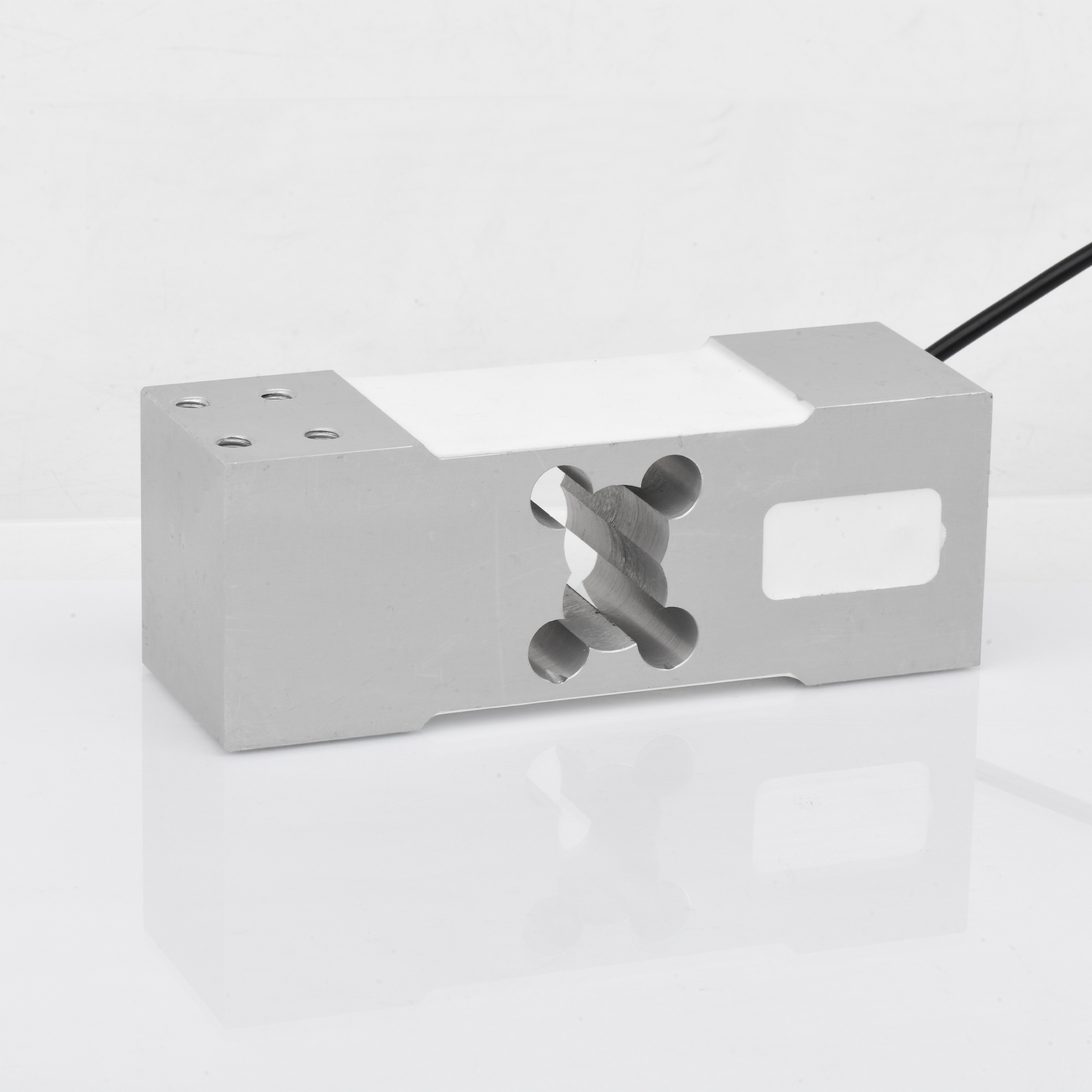

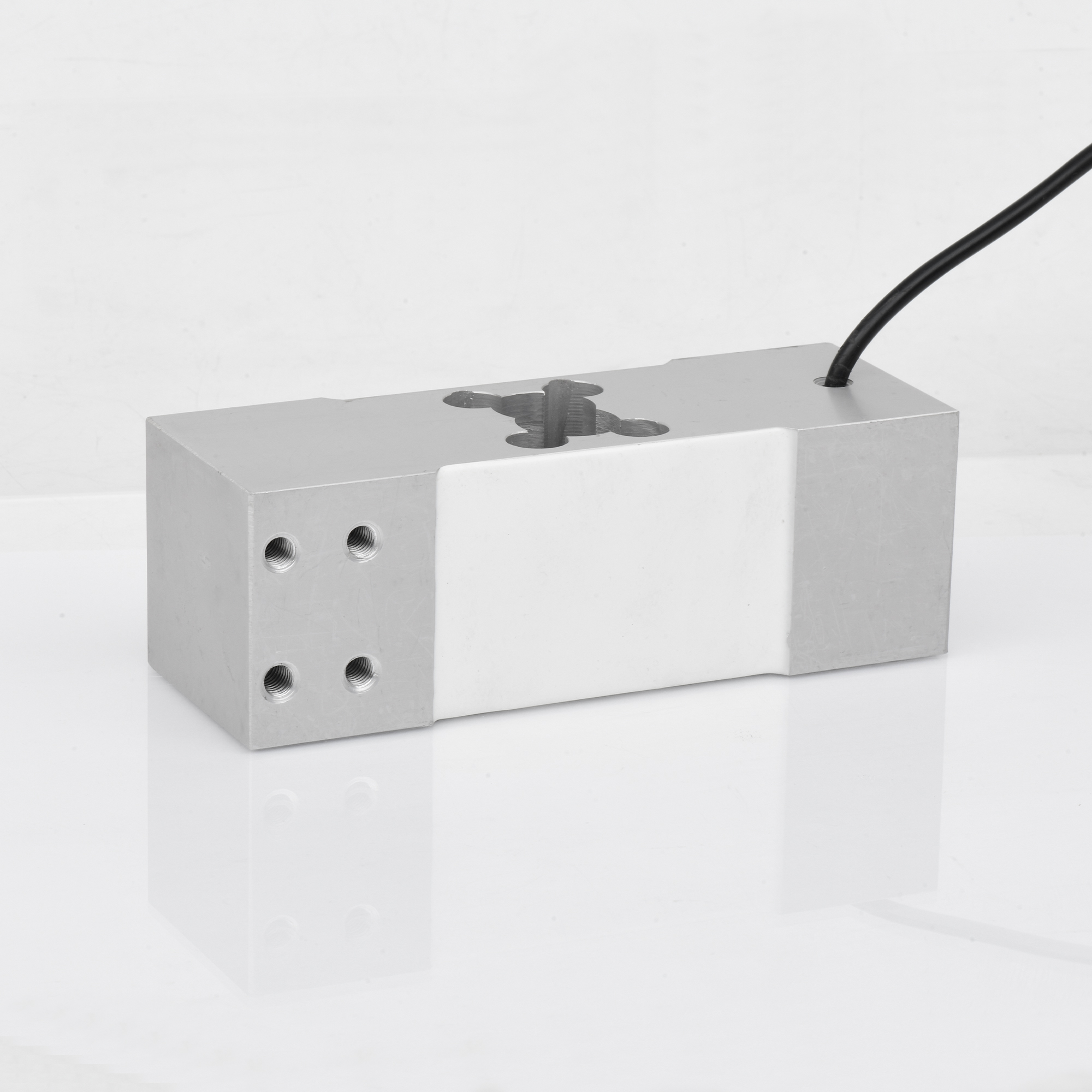

LynhH-6PL-Z3 aluminum box load cell is a game-changer in high-capacity weighing, blending advanced engineering with user-friendly design.
LynhH-6PL-Z3 aluminum box load cell is a game-changer in high-capacity weighing, blending advanced engineering with user-friendly design.
Innovative Structure: Constructed from LY12(2A12,AA2024) aluminum alloy, its single-point load-bearing design, validated by Finite Element Analysis, optimizes force distribution. With specific capacity, it delivers stable, accurate measurements even under heavy or off-center loads.

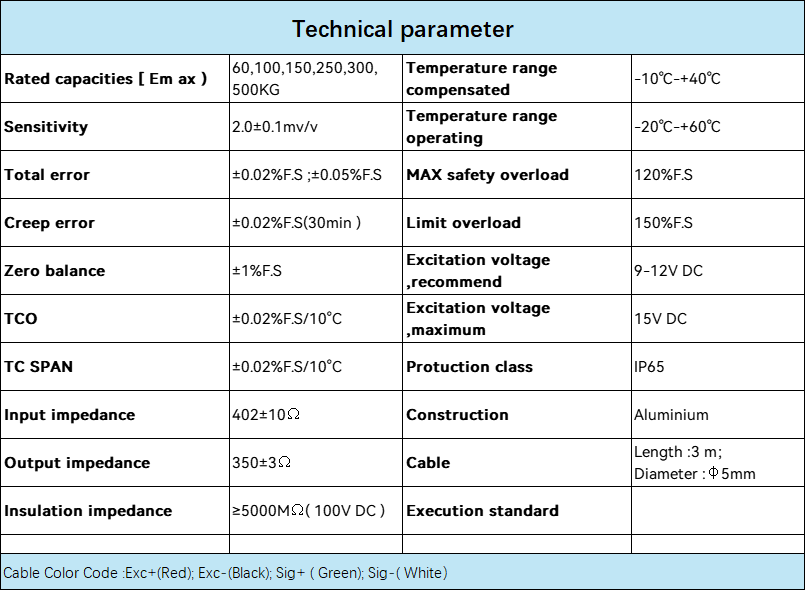

Precision Calibration: Factory-calibrated using proprietary algorithms and top-tier equipment, it achieves remarkable accuracy: non-linearity ≤ ±0.03% FS, hysteresis ≤ ±0.03% FS, and repeatability ≤ ±0.02% FS. Temperature-compensated from -10℃ to +50℃ (TCS ≤ ±0.05% FS/10℃), it ensures consistent performance across various environments.
Versatile Applications
Industrial Use: Ideal for heavy-duty platform scales in manufacturing, logistics, and warehousing, accurately weighing trucks and machinery.
Railway Systems: Suitable for railway weighbridges, meeting strict industry standards.
Custom Solutions: Adaptable for specialized equipment in construction, agriculture, and other sectors.
User-Centric Features：With an IP65-rated housing, it resists dust, water, and impacts. Available in 2 or 4-channel configurations, it integrates easily with different weighing systems. Its compact, lightweight build and standardized interface simplify installation, operation, and maintenance, minimizing downtime.
In summary, it offers high-capacity, precision weighing with durability and flexibility. It’s the go-to choice for reliable, efficient weighing solutions across diverse industrial applications.
