LynhH-6PL-Z2
Capacity: 30kg to 500kg
Product Description

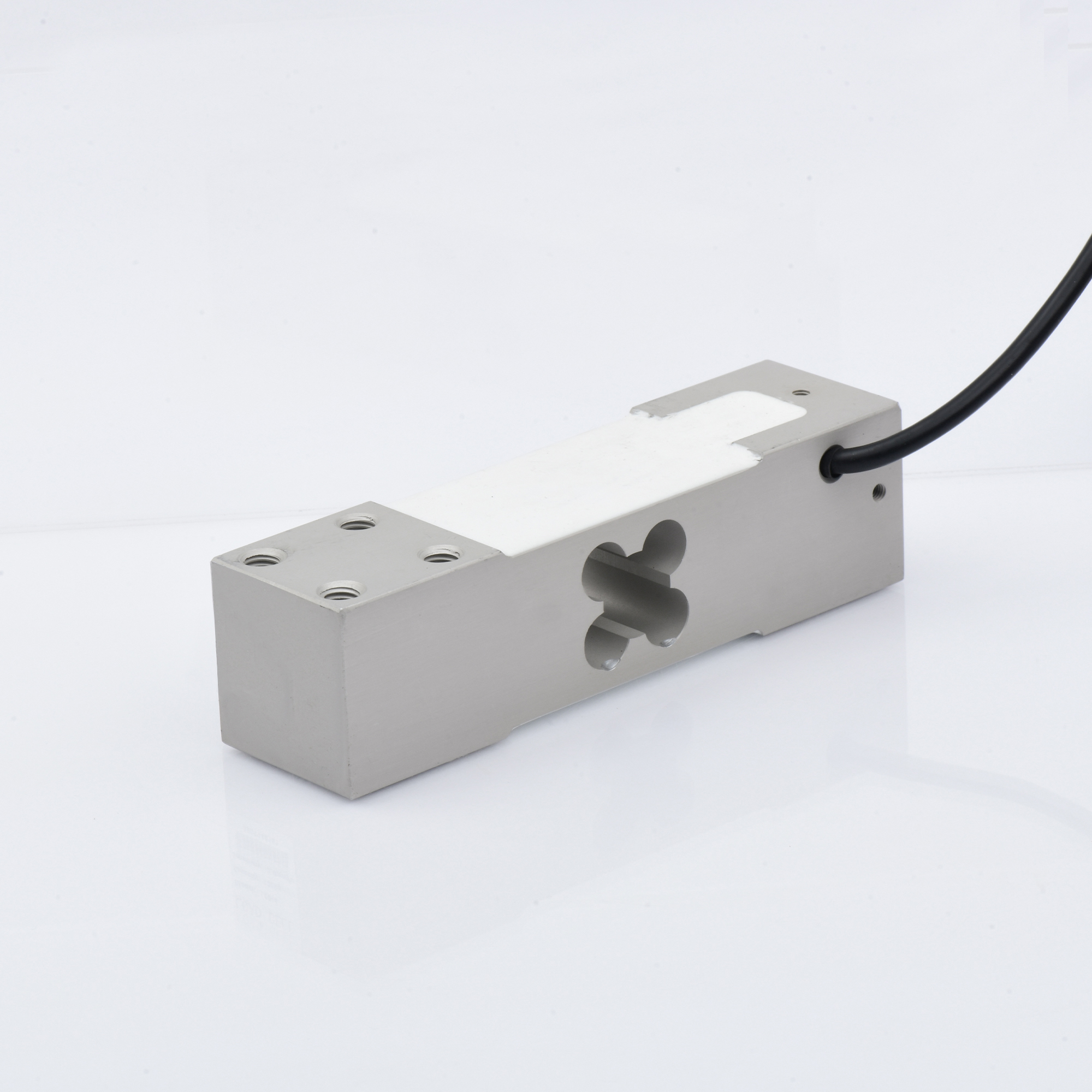

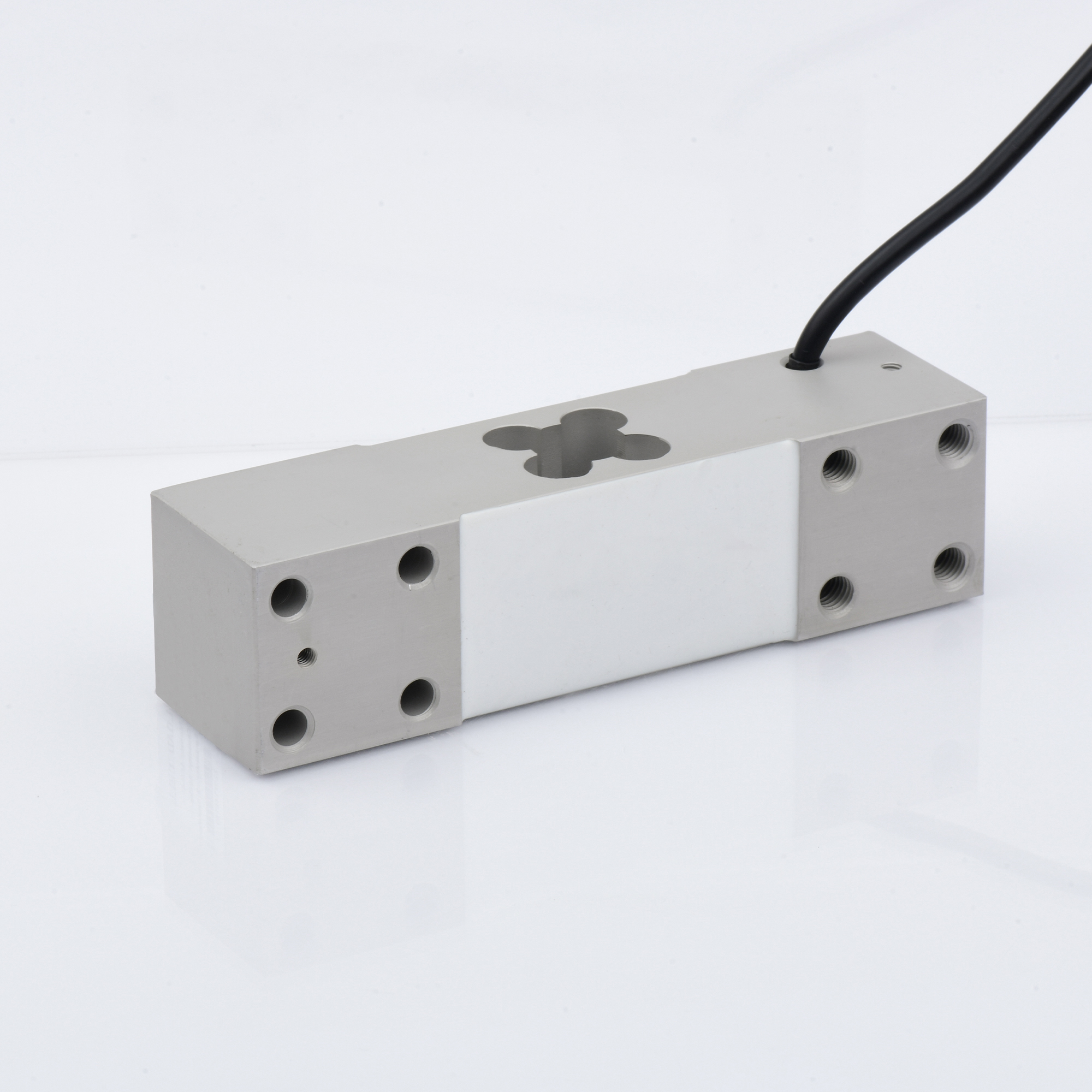

LynhH-6PL-Z2 aluminum box load cell is a high-performance weighing solution
Product Description
LynhH-6PL-Z2 aluminum box load cell is a high-performance weighing solution, featuring:
Innovative Structure: Its single-point load-bearing design, crafted from LY12(2A12,AA2024) aluminum alloy, ensures even load distribution , minimizing stress-induced errors.
Precision Calibration: Four-corner adjustment by professional technicians achieves ≤ ±0.03 %FS non-linearity and hysteresis errors, and ≤ ±0.02 %FS repeatability, guaranteeing consistent readings across the load plane.
Rugged Specifications: With an IP65 rating, it resists dust and water jets. It operates stably from -10℃ to +50℃ (TCS ≤ ±0.05 %FS/10℃), thanks to its corrosion-resistant material.
User-friendly Design: Available in 2/4-channel configurations, it integrates easily with weighing systems. The light weight, compact housing and standardized electrical interface simplify installation, operation, and maintenance.
Wide Applications: Suitable for industrial platform scales in manufacturing and logistics, compact bench scales in retail, and weighing equipment in agriculture and food processing.
This load cell combines advanced technology, high precision, and versatility, providing accurate and reliable weighing solutions for diverse industries.
