High-Precision Weighing Indicators

TCPIP-35A4


Stainless steel housing;
6-digit 20.2mm red LED;
Dimensions: 265×162×58mm;
Applications: Electronic platform scale, weighing scale, etc;


TCP/IP weighing indicator, with WiFi - WAN/LAN;
Modbus ASCII communication protocol.

Product Description

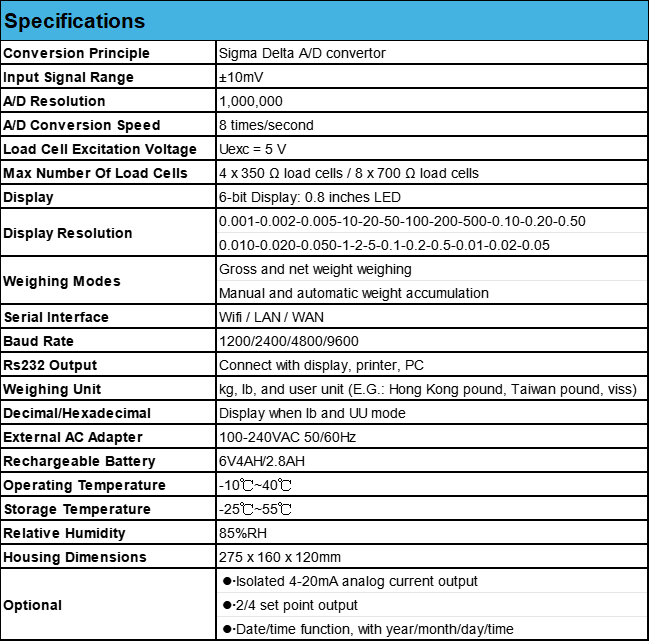

Technical Parameters

Model: TCPIP-35A4



Instrument Parameters

Power Supply: AC220V/50Hz

Operating Temperature: -10℃ - 40℃

Maximum Humidity: ≤85%RH

Power Consumption: 20W

Protection Class: IP23; Optional IP66

A/D Conversion Speed: 8 times/second



Measurement Parameters

Highest Display Precision: 1/1,000,000

Built - in Rechargeable Battery: 6V/4AH or 6V/2.8AH

Sensor Power Supply: DC5V, can drive up 4X350Ω or 8X700Ω load cells



Communication

Communication Method: Network port: TCP/IP; WiFi wireless communication



I/O Interface

Software Version: VER20.1---4 set points, 2 relay outputs; D - type 9 - pin, optional isolated type 4 - 20mA analog current output;
