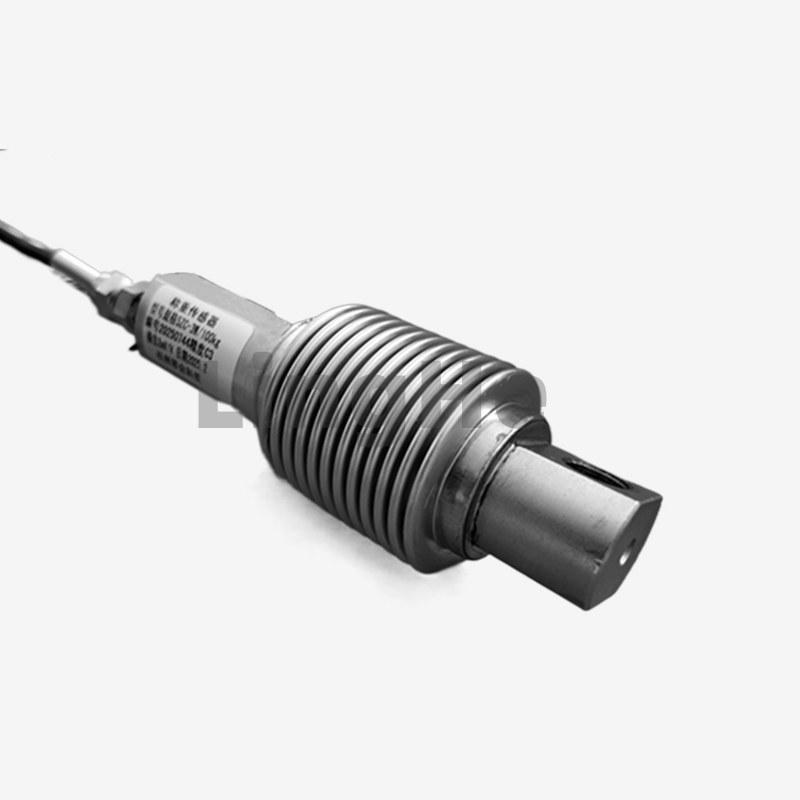

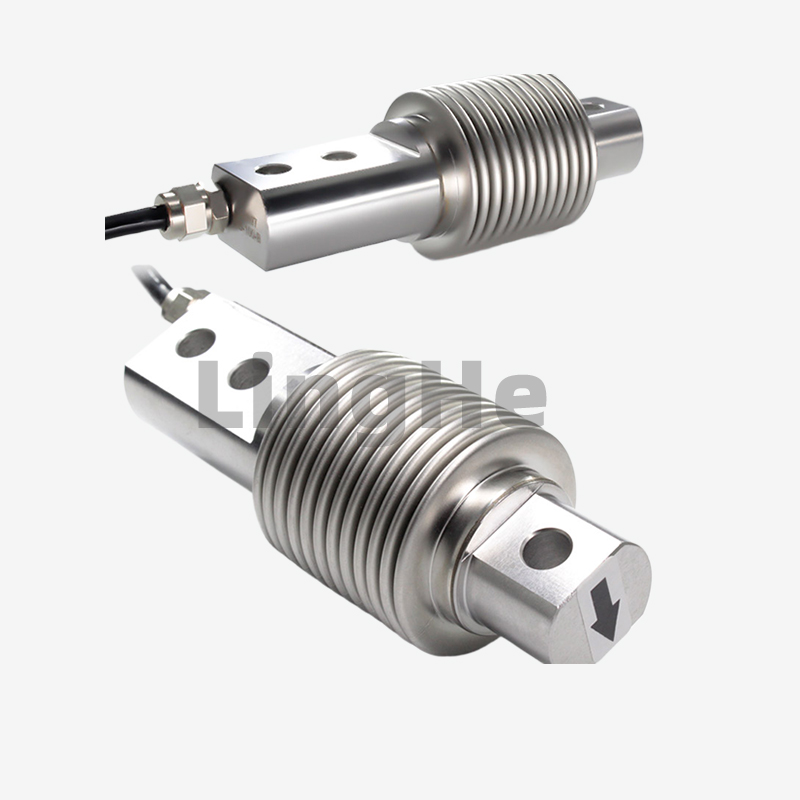

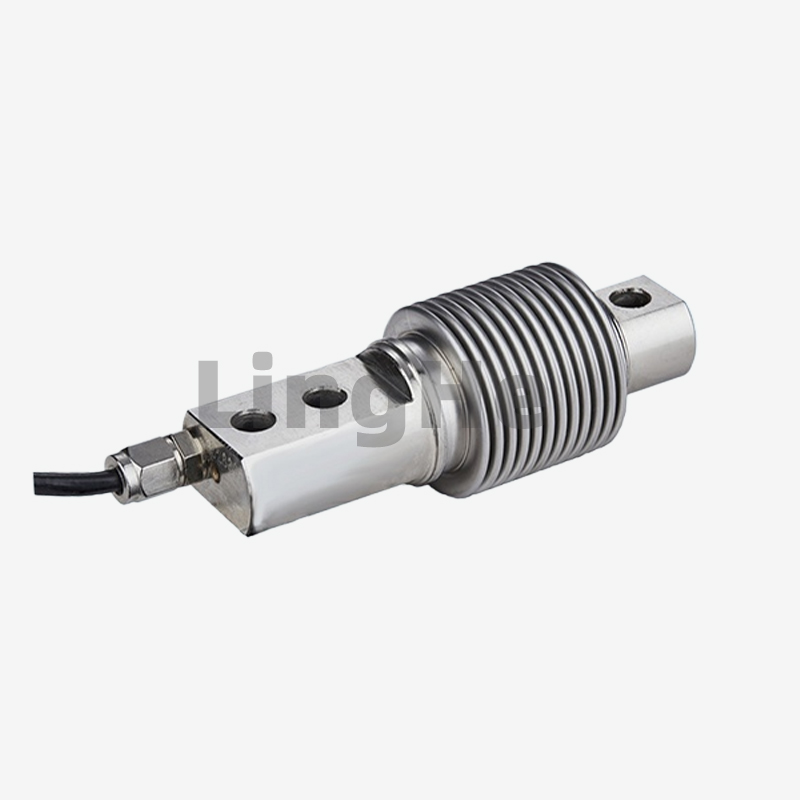

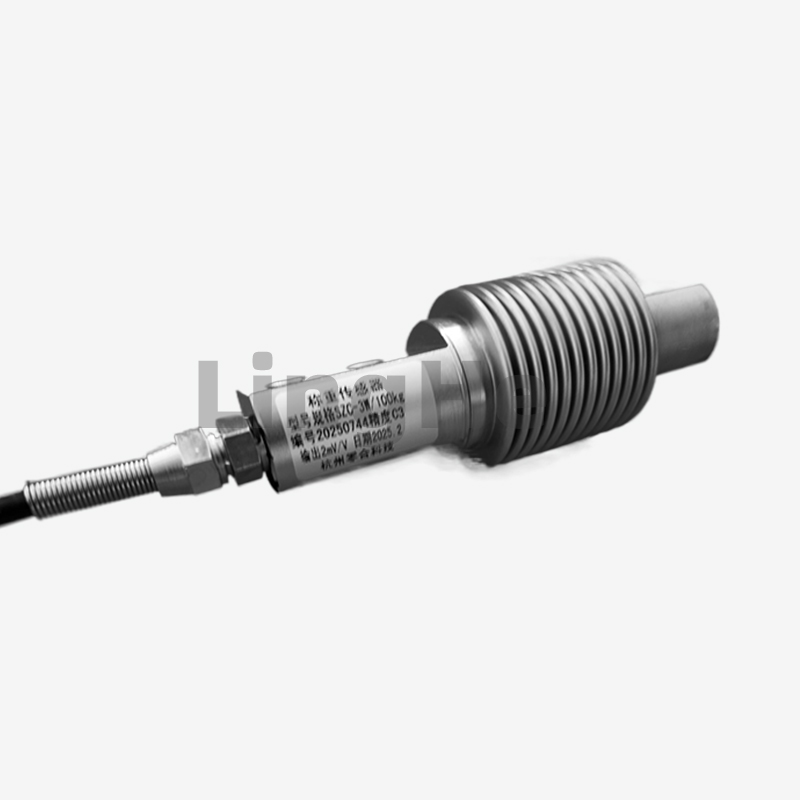

LynH-3WD series (LynH-3WD-100KG)
Capacity: 10, 20, 30, 50, 100, 150, 200, 500, 1000KG
Product Description
The strain element of this advanced load cell employs an I-beam cross-section design, precisely sampling shear strain from the web. This configuration delivers exceptional resistance to eccentric loading, lateral forces, and torsional moments, ensuring reliable performance in dynamic industrial environments.
Key Features:
Structural Integrity: Optimized I-beam geometry minimizes deflection under load, providing superior stability.
High Precision: Advanced strain gauge technology and digital compensation ensure accuracy within tight tolerances.
Sealed for Durability: Multi-layer epoxy potting and bellows sealing protect internal components from moisture, dust, and corrosion, meeting IP68/IP69K standards.
Surface Protection: Specialized rust-resistant coating enhances durability in harsh environments.
Reliable Signal Transmission: Shielded, high-flexibility cable with reinforced insulation ensures stable operation in electrically noisy conditions.
Ideal Applications:
Industrial weighing systems operating in harsh conditions;
Belt scales for continuous material flow measurement;
Process control systems requiring high accuracy and reliability;
Overhead cranes and hoisting equipment;
Heavy-duty platform scales;
This load cell combines robust construction with precision engineering to provide long-term, stable performance in demanding industrial environments. Its modular design allows seamless integration into existing systems, making it a versatile solution for a wide range of weighing applications.

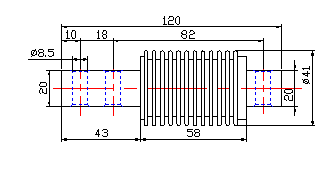

Size parameters
