Material: 304/316 Stainless Steel
Protection Class: IP67
Operating Temperature: -40°C to +70°C
Cable Entry: M20 or custom configurations
Number of Channels: 4/6/8/10/12-channel options available
Applicable resistance of load cell: 120Ω~1kΩ (350Ω~700Ω in common use)

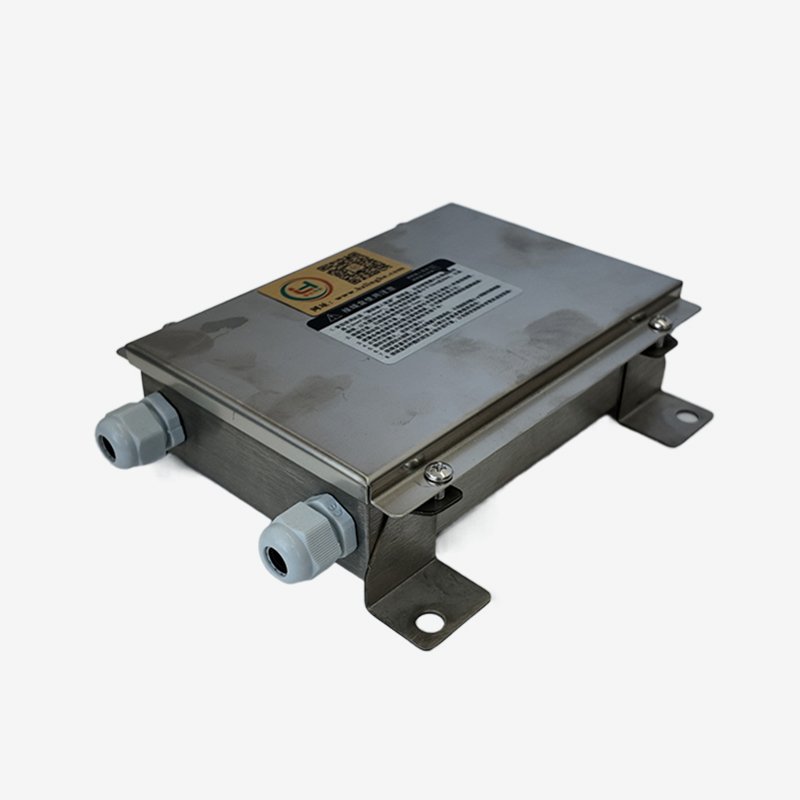

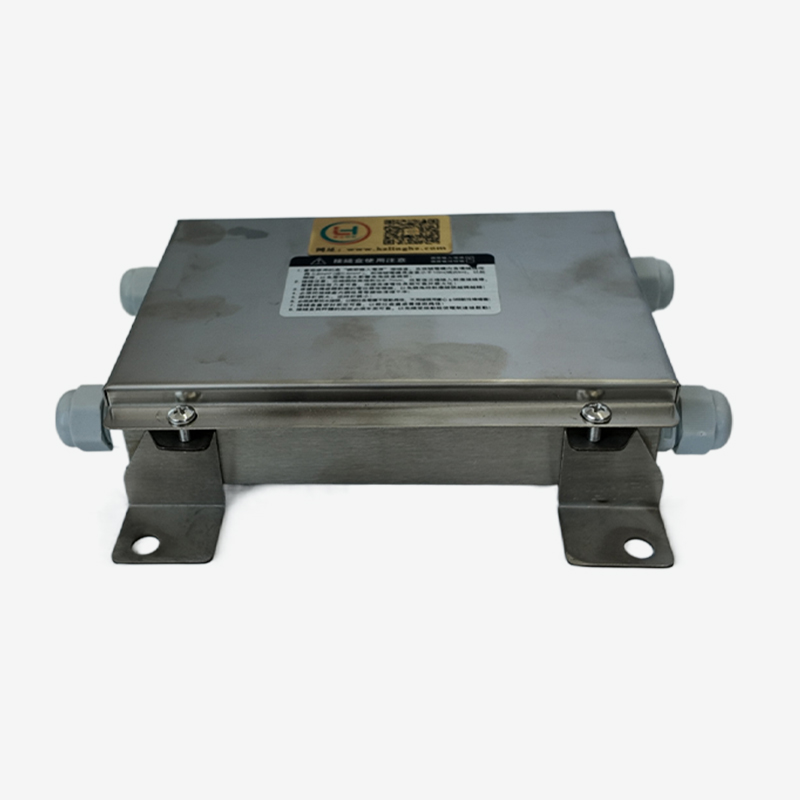

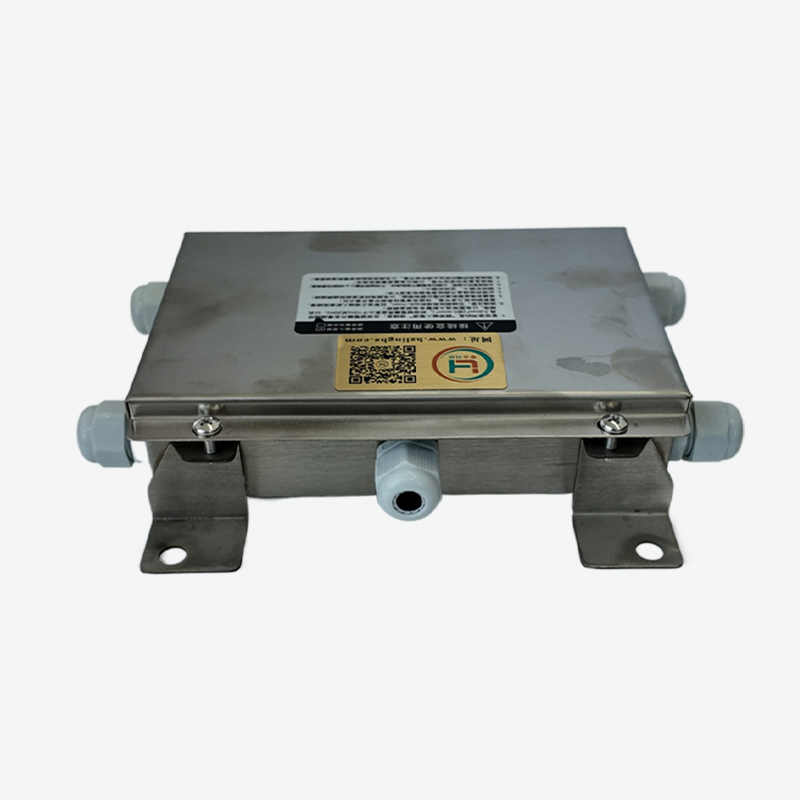

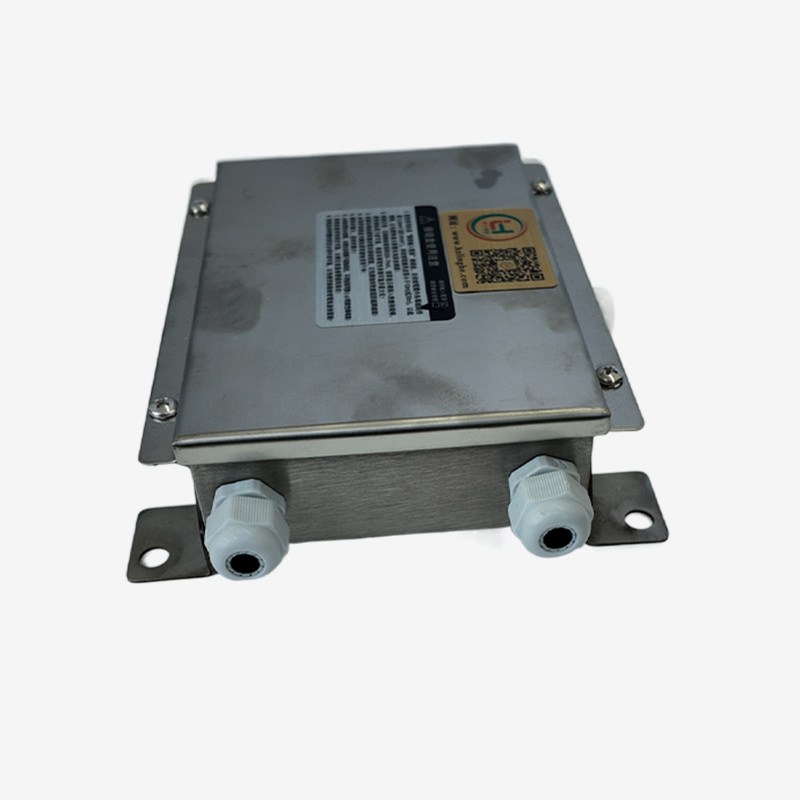

The stainless steel junction box is specifically engineered for parallel connection of multiple load cells, enabling precise corner error adjustment in multi-point weighing systems. This critical component ensures uniform load distribution and measurement consistency across the entire weighing platform.
Key Features:
1）Robust Construction: Fully welded stainless steel housing with IP68/IP69K-rated waterproofing, featuring a box cover gasket and sealed cable connectors to withstand harsh industrial environments.
2）Precision Calibration: Utilizes parallel resistance adjustment principle to fine-tune output impedance of each load cell, minimizing corner errors and ensuring balanced system response.
3）Factory Pre-Calibrated: Pre-adjusted for compatibility with matched load cell groups, reducing on-site calibration time. Typically requires only minor adjustments when paired with load cells of similar sensitivity.
4）Easy Installation: Designed for straightforward integration into existing weighing systems, with clear terminal markings and ample wiring space.
5）Environmental Resilience: Corrosion-resistant materials and sealed design protect internal circuitry from moisture, dust, and chemical exposure.
