The screen adopts permission management method, so that there is no fear of wrong operation on site; One instrument allows two sets of weighings to be controlled independently, making the site more concise.
Features
Maximum display accuracy: 1/1,000,000;

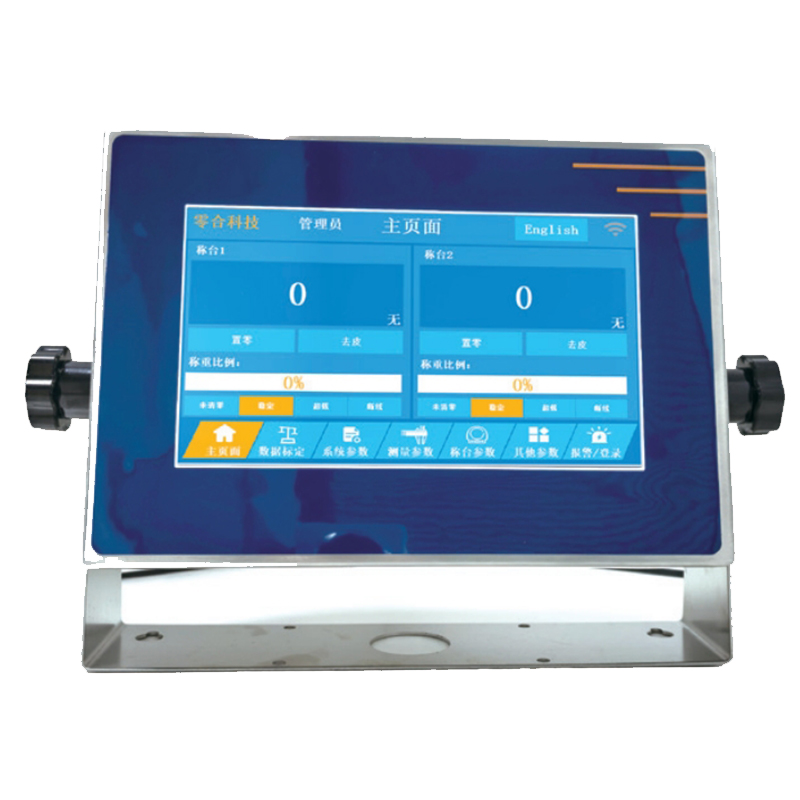

Large screen display, simple and intuitive operation;
The screen adopts permission management method, so that there is no fear of wrong operation on site;
One instrument allows two sets of weighings to be controlled independently, making the site more concise;
Double scale instrument = 2 single scale instruments, making the price/performance ratio even more impeccable;
Modbus-TCP, EtherCat communication bus, multiple options;
Interface configuration
Standard configuration: dual scale function; 7-inch display touch screen, Modbus-TCP communication bus
Optional: EtherCat communication bus
Intelligent double scale parameters
Model: DUB-7XD
| Instrument parameters | Power supply | 24V DC |
| Working temperature | -10℃ ~40℃ | |
| Maximum humidity | ≦ 85 ﹪ RH | |
| Power consumption | 30W | |
| Protection grade | IP23 | |
| Metering parameters | A/D conversion speed | 10, 40, 640, 1280 times/second |
| Maximum display accuracy | 1/1,000,000 | |
| A/D performance | 24-bit, Delta-Sigma method | |
| Sensor power supply | DC5V can connect up to 8 350 ohm sensors | |
| Communication | Communication method |
Network port: Modbus-TCP/EtherCat; Rate: 10M/100M/10~100 adaptive |
| Features | Function | double scale |

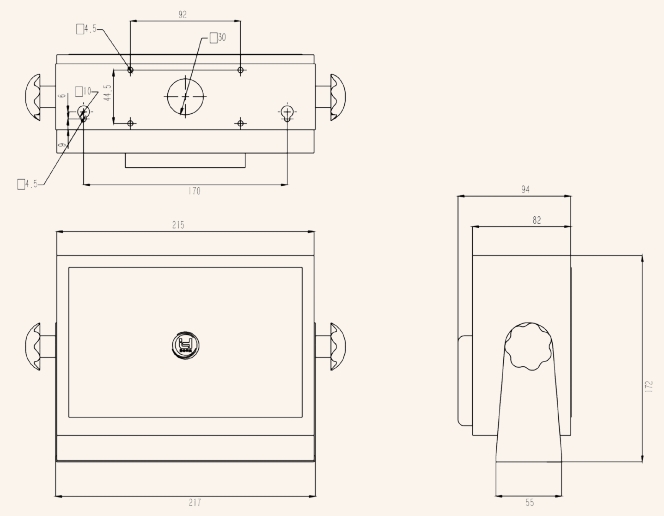

Intelligent double scale floor plan
